उत्पाद विवरण:
|
| प्रतिरूप संख्या।: | जेपी-600जी | आवृत्ति: | 40 किलोहर्ट्ज़ / 28 किलोहर्ट्ज़ |
|---|---|---|---|
| क्षमता: | 264एल | टैंक का आकार: | 800 * 600 * 550 मिमी |
| ट्रांसड्यूसर काउंट: | 60pcs | अल्ट्रासोनिक शक्ति: | 3000W |
| तापन शक्ति: | 9000 डब्ल्यू | समय निर्धारित करना: | 0~99 घंटे |
| तापमान सेटिंग: | 20~95 सेल्सियस | फ़िल्टर व्यास: | 5~10 माइक्रोन |
| फ़िल्टर सामग्री: | पीपी कपास | टैंक सामग्री: | SUS 304 |
| टैंक की मोटाई: | 2 मिमी | टोकरी भार: | 300 किलो |
| जल पंप लिफ्ट: | 20 मीटर | ||
| प्रमुखता देना: | 250L industrial ultrasonic cleaner,ultrasonic nozzle cleaning machine,large capacity ultrasonic cleaner |
||
| Specification | Details |
|---|---|

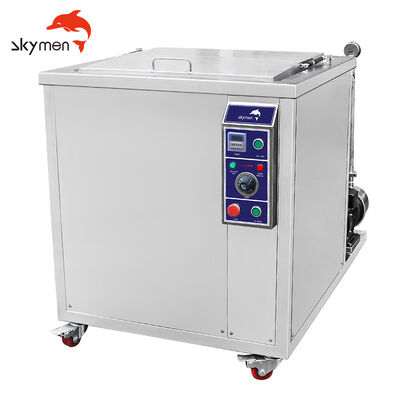

| Model | JP-600G (Ultrasonic cleaning + heating + filter) |
| Ultrasonic Frequency | 40/28KHz; 68/80/132KHz can be customized |
| Tank Material | SUS 304; SUS316 can be customized |
| Inner Tank Dimension | 800×600×550mm |
| Tank Capacity | 264L |
| Transducers | 60pcs |
| Ultrasonic Power | 3000W (40%-100% adjustable) |
| Heating Power | 9000W |
| Ultrasonic Time Setting | 0~99 hours |
| Temperature Setting | Room temperature ~ 95°C adjustable |
| Tank Thickness | 2mm |
| Basket Load Bearing | 300KG |
| Generator | 1 set |
| Water Inlet/Outlet | Yes |
| Filtration System | Yes |
| Filter Material | PP Cotton |
| Filter Diameter | 5~10μm |
| Water Pump Lift | 20 meter |
| Measurement | Dimensions |
|---|---|
| Inner Tank Dimension | 800×600×550mm (L×W×H) |
| Whole Machine Size | 1100×1300×1050mm (L×W×H) wrapped with thin film |
| Package Size | 1200×1400×1200mm (L×W×H) by wooden case |
| Net Weight / Gross Weight | 280KG / 330KG |
| Model | Capacity (L) | Tank Size (mm) | Transducers | Ultrasonic Power (W) | Heating Power (W) | Frequency (KHz) |
|---|---|---|---|---|---|---|
| JP-120G | 38 | 500×300×250 | 12 | 600 | 1500 | 28/40 |
| JP-180G | 53 | 500×350×300 | 18 | 900 | 1500 | 28/40 |
| JP-240G | 77 | 550×400×350 | 24 | 1200 | 3000 | 28/40 |
| JP-300G | 99 | 550×450×400 | 30 | 1500 | 3000 | 28/40 |
| JP-301G | 96 | 800×300×400 | 30 | 1500 | 3000 | 28/40 |
| JP-360G | 135 | 600×500×450 | 36 | 1800 | 4500 | 28/40 |
| JP-480G | 175 | 700×500×500 | 48 | 2400 | 6000 | 28/40 |
| JP-600G | 264 | 800×600×550 | 60 | 3000 | 9000 | 28/40 |
| JP-720G | 360 | 1000×600×600 | 72 | 3600 | 9000 | 28/40 |
| JP-1108G | 540 | 1000×900×600 | 108 | 5400 | 18000 | 28/40 |
| JP-1144G | 960 | 1200×1000×800 | 144 | 7200 | 27000 | 28/40 |
